Injection Molding Control Solutions



Injection Molding Control Solutions

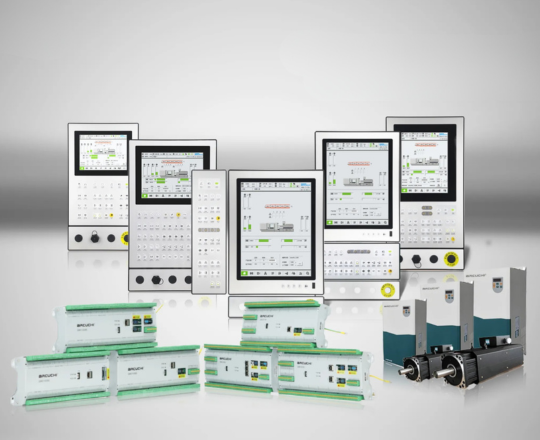

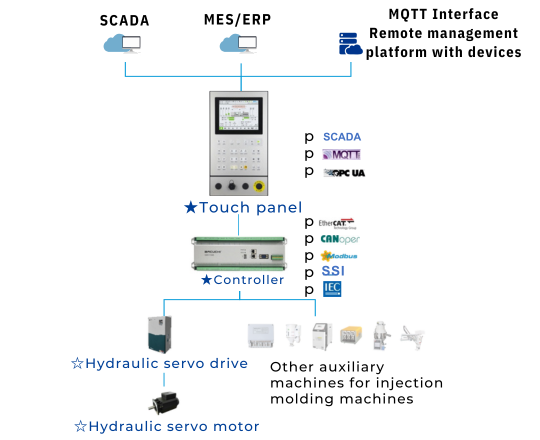

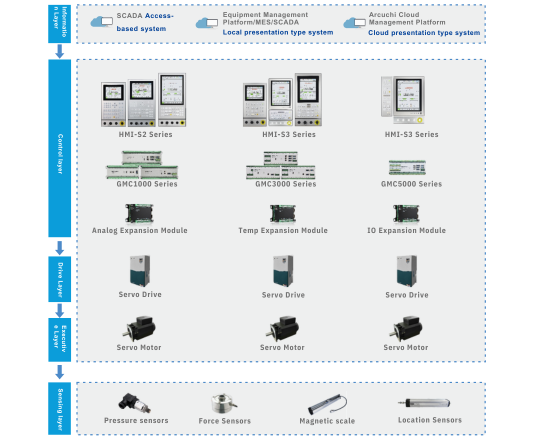

As a comprehensive solution provider of products and services, Shenzhen Arcuchi Technology Co., Ltd. has been engaged in injection molding control industry for many years. At present, we have developed 3 series (1000/3000/5000) of products for various IMM models, such as standard, two plate, blow molding, hybrid, all-electric. Arcuch product has the characteristics of fast response and high control precision. 3 series controller, multi-size (8 '/10' /12' /15 '/21') touch screen not only meet the needs of different type machine of customers with high quality in hardware, but also meet the needs in software. Arcuchi products support Ethernet connection and can interact with MES and ERP system via the OPCUA communication protocol, presenting multi-dimensional data such as process data, SPC data and alarm log to users, providing quantitative and visual management data for lean production. Arcuchi, your trusted partner.

Enquiry Now


3200 1108S 1008S
3200 Model 3200 Model 1108S Model 1008S Model
MONITOR 10"/12" 10" / 8" 10" / 8"
TOUCH YES YES YES
DI 32 32 28
INPUT TYPE PNP / NPN PNP / NPN PNP / NPN
DO 40 40 32
ANALOG INPUT 8 8 4
DIFFERENTIAL INPUT 2 - -
ANALOG OUTPUT 8 4 2
SCOPE -10V TO +10V -10V TO +10V -10V TO +10V
OUTPUT CURRENT 4 3 2
PRECISION 16 BIT 16 BIT 16 BIT
SCOPE 1 AMP 1 AMP 1 AMP
TEMPERATURE INPUT 9 8 6
CONTROL TYPE PID PID PID
THERMOCOUPLE SELECTION K/J K/J K/J
SERVO 1 1 0
ENCODER 1 1 0
SSI 1 1 1
ETHERNET 1 1 1
USB 1 1 1
CAN 1 1 1
RS485 2 2 2
DO OVER CURRENT PROTECT YES YES YES
EXPANSION CARD SUPPORT YES YES YES
