Servo System
Servo System
Servo System ensures precise motion control in CNC machines and industrial automation. They regulate voltage/current to servo motors, guaranteeing accurate and repeatable movement for high-performance applications. Essential for achieving superior accuracy and efficiency.

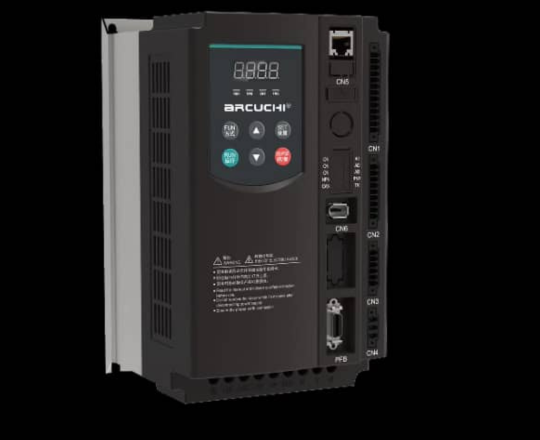

This series integrates servo pulse control port, digital input\output, analog input\output, field bus interface (EtherCAT, EtherNet, CAN, RS485, RS422), position feedback interface (A/B/Z, SSI), PLC servo control interface to the hydraulic system controller.
Mainly for spring machine, wire forming machine, pipe forming machine and other industries.
Enquiry NowServo Pump Specifications
| NO. | SERVO LPM | PRESSURE (BAR) | MOTOR (KW) | DRIVE (KW) | PUMP (CC) |
|---|---|---|---|---|---|
| 1 | 64 | 175 | 13.2 KW | 18.5 KW | 32 |
| 2 | 80 | 175 | 19.9 KW | 22 KW | 40 |
| 3 | 100 | 175 | 24 KW | 22 KW | 50 |
| 4 | 125 | 175 | 28 KW | 30 KW | 63 |
| 5 | 160 | 175 | 39 KW | 37 KW | 80 |
| 6 | 200 | 175 | 45 KW | 45 KW | 100 |
| 7 | 250 | 175 | 56 KW | 55 KW | 125 |
| 8 | 320 | 175 | 67 KW | 75 KW | 160 |

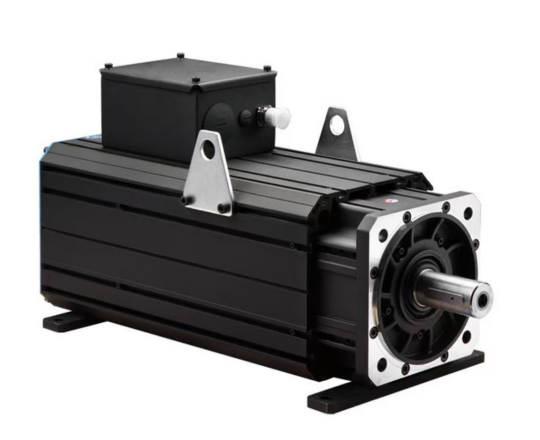

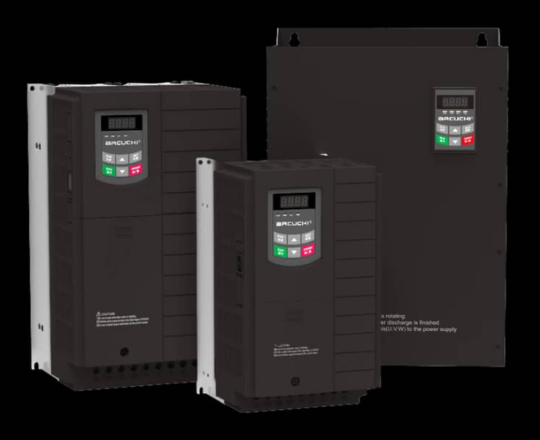

Note: MOTOR MAKE ARCuchi, DRIVE MAKE ARCuchi, PUMP MAKE YANGTONG, PRESSURE TRANSDUCER, COUPLING, BELL HOUSING, RESOLVER CABLE, BRAKING RESISTOR, INPUT LINE CHOKE, PUMP INPUT OUTPUT FLANGE.
